SAFETY
WITHOUT COMPROMISE

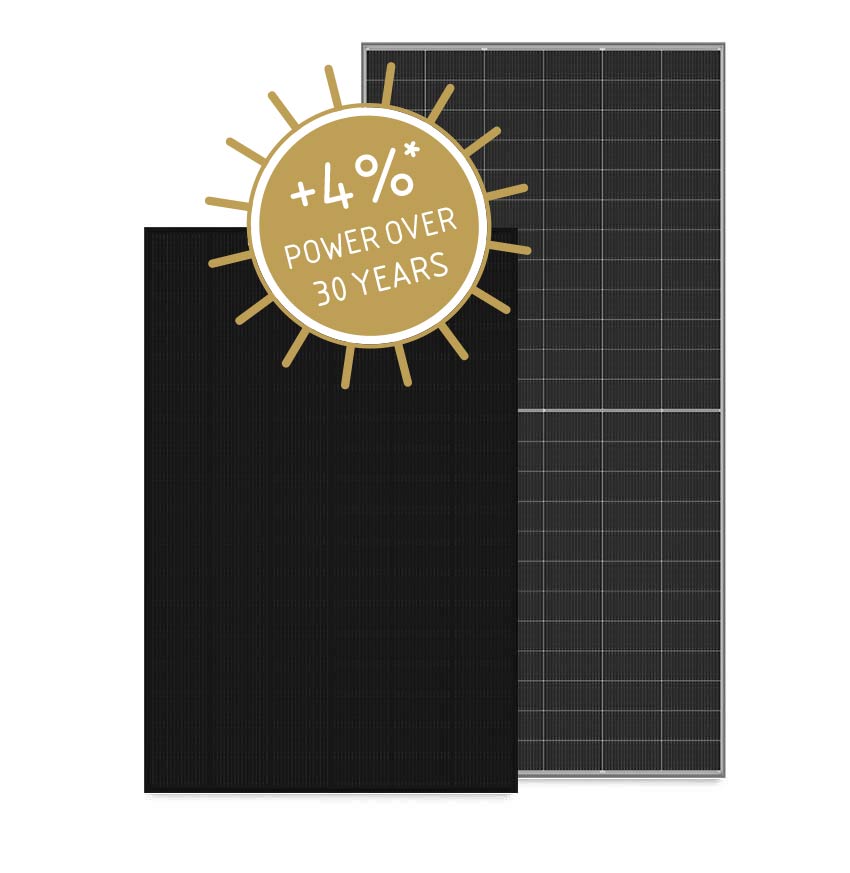

Eco Line SECURE TOPCON GLAS-GLAS BIFACIAL
BLACK FRAME, WHITE MESH | NON-REFLECT
M96 460W 182R+
-
HIGHLY EFFICIENT N-TYPE TOPCON CELLS
-
GLASS-GLASS: HIGHER MECHANICAL AND THERMAL STABILITY
-
DIN18008 ABZ/ABG: Z-70.3-306 APPROVED
-
FIRE SAFETY CLASS A
-
HAILSTROM CLASS A
-
SPECIAL GLASS FOR LEAST REFLECTION
TECHNICAL DATA
| Type | 96 N-Type HJT |
| Rated power PMPP | 455 up to 475 Wp |
| Temperature coefficient | - 0.26 %/K |
| Efficiency | Up to 23.54 % |
| Dimensions | 1762 mm × 1134 mm × 30 mm |
| Max. pressure/tensile load | 6000 Pa / 4000 Pa |
| Hail test | ∅ 45 mm | 30.7 m/s ≙ 110.5 km/h |
WARRANTIES
30 Years
product guarantee
linear performance
guarantee
Eco Line GG N-TYPE HJT BIF Black Frame, White Mesh optimal for
ECO LINE SECURE - ECO LINE TOPCON - TECHNOLOGY
